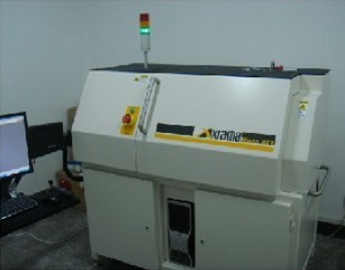

Xradia MicroXCT-200 显微CT

    生产公司：Xradia (美国)

    仪器型号：MicroXCT-200

    仪器特点：

- 非破坏性的3D成像

- 空间分辨率达到2μm以下，像素分辨率达到1μm以下

- 小型集成式设计，占地面积小

- 灵活的2透镜成像放大系统

- 方便快捷设定扫描参数

- 多点自动扫描，实现高生产率

- 多个探测器满足不同分辨率需求

三个不同探测器参数：

Spatial Resolution and FOV Ranges,by Magnification Level

放置地点：上海市华山路1954号英国威廉希尔公司官网教三楼Med-X研究院117室

联系人：刘佳霖

电话： 13611966221

Email：liujialin@sjtu.edu.cn

The Xradia MicroXCT-200

The Xradia MicroXCT-200 provides the unique ability to reveal the internal structure with full 3D imaging of features down to <1.0 micron pixel resolution, making it a compelling alternative for research and the inspection and control of manufacturing processes.

The Xradia MicroXCT-200 delivers superior flexibility with a two-door accessible sample stage that accommodates sample sizes up to 50 mm.

Key benefits:

High-resolution X-ray 3D CT scanning

High-contrast phased enhanced imaging

Broad sample size capability

Non-destructive imaging of samples

Accelerated understanding of internal structural complexity

The Xradia MicroXCT-200 is a new class of 3D X-ray imaging solution optimized for non-destructive imaging of complex internal structures. It enables accelerated, highly efficient analysis of structures examined in a variety of applications:

Semiconductor packaging development and failure analysis

Life-science research

Rock microstructure modeling for oil and gas exploration

Advanced material characterization

Source: 90 kV

Max. voltage: 90 kV

Min. voltage:40 kV

Max. power:8 W

Location: Room 117, Med-X Research Institute, No.3 Teaching Building, Shanghai Jiaotong University, No. 1954 Huashan Road, Shanghai

Contact: Jialin liu

Telephone: 13611966221

Email: liujialin@sjtu.edu.cn
